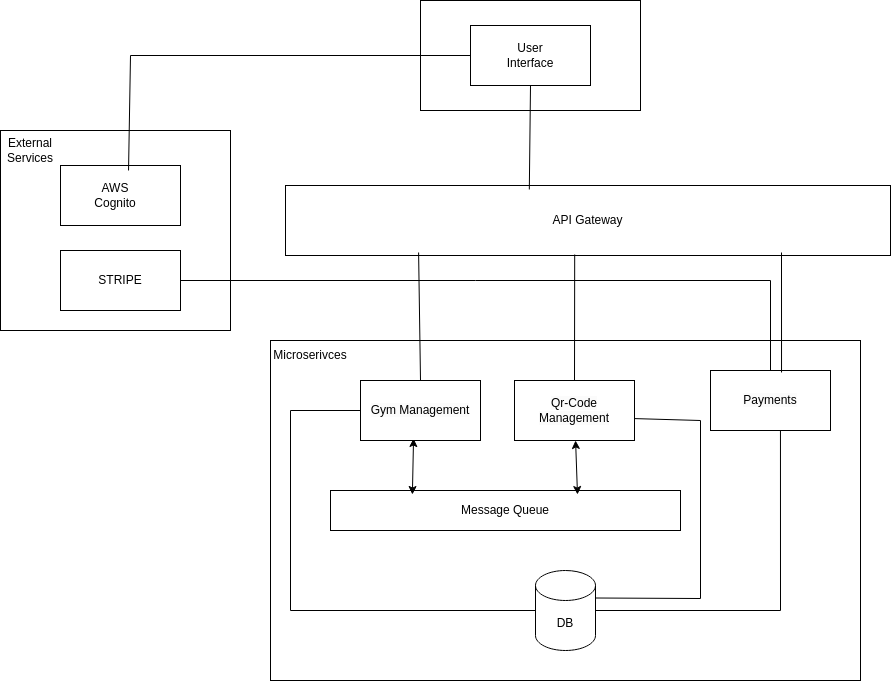

This diagram illustrates the architecture of our microservices, external services, and an API gateway. Below is a detailed breakdown of its components:

External Services

  • AWS Cognito: Used for user authentication and identity management, ensuring secure access to the platform.
  • Stripe: Integrated to manage gym membership payments seamlessly.

User Interface

  • The frontend application is where users interact with the system.
  • It communicates with the backend through the API Gateway, which acts as the intermediary between the user interface and microservices.

Microservices

  1. Gym Management: Manages functionalities related to gym operations, including membership management and gym attendance tracking.

  2. QR-Code Management: Handles QR code operations such as generating unique codes for users and scanning them for authentication or tracking purposes.

  3. Payments: Processes payment-related tasks and interacts with Stripe for secure transaction handling.

Message Queue

  • Microservices communicate asynchronously using a shared Message Queue.
  • Apache Kafka is used to facilitate reliable communication, ensuring that data flows efficiently between microservices like Gym Management and QR-Code Management.

Database

A centralized MySQL Database is used to store essential application data, such as:

  • User information
  • QR code details
  • Payment records
  • Other related resources

This database ensures data consistency and simplifies management across all microservices.

AWS Cloud Deployment Architecture

Microservices Architecture

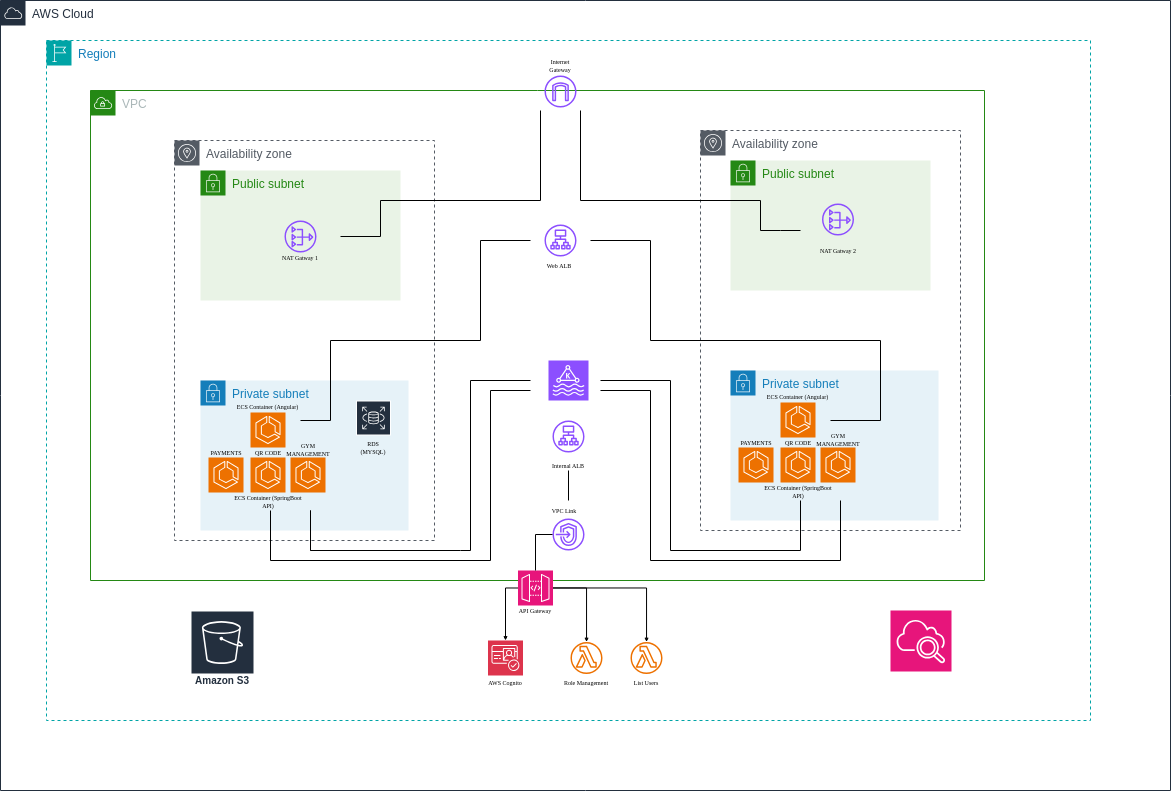

This deployment is designed to ensure scalability, security, and high availability for a the FIT Monitor APP. The architecture leverages multiple AWS services to provide a reliable and efficient environment. Below is a detailed description of the components and their roles:

AWS Cloud and Region

  • The deployment is hosted within an AWS Region, ensuring that all resources are centralized to minimize latency and optimize performance. The entire infrastructure resides within a Virtual Private Cloud (VPC) configured for isolation and security.

Virtual Private Cloud (VPC)

  • A dedicated VPC isolates the deployment in a secure network environment. The VPC is divided into public and private subnets, distributed across two availability zones to provide resilience and fault tolerance.

Availability Zones

  • The architecture operates across two availability zones, each containing public and private subnets. This ensures high availability and redundancy, minimizing the impact of failures in a single zone.

Public Subnets

The public subnets in each availability zone include:

  • Internet Gateway (IGW): Connects the VPC to the public internet, enabling external communication for the application.
  • NAT Gateways: Allow instances in private subnets to securely access the internet for updates or external communications without exposing them to the public.

Private Subnets

The private subnets host the core application services:

ECS Containers

Using AWS Elastic Container Service (ECS), containers are deployed for the following application modules:

  • Payments
  • QR Code Management
  • Gym Management
  • Frontend with NGinx

Both the frontend (Angular) and backend (Spring Boot API) are containerized and run on ECS.

Database (RDS)

  • The Amazon RDS (MySQL) relational database is deployed in the private subnets to securely store critical application data.

Lambda Functions

  • 3 AWS Lambda functions are used. One for atomatically assigning a "User" role using "cognito:groups" claim of cognito token, another for listing all the users in the user pool and the last one for changing the role of a user. The last two functions are only accessible by the admin.

S3 Bucket

  • An S3 bucket is connected to the backend (Gym Management API) and is used to store images of gym machines. When a machine is created by an admin, its image is uploaded and stored in the bucket.

Load Balancers

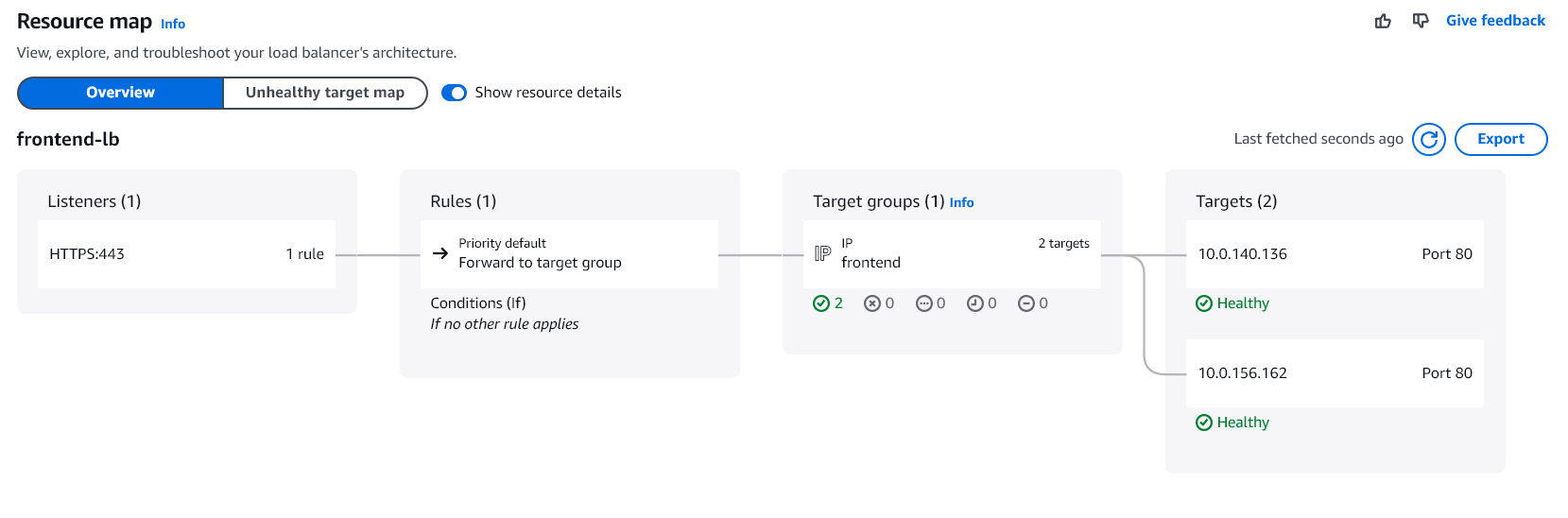

Web Application Load Balancer (Web ALB):

  • Manages incoming traffic and distributes requests to ECS containers in private subnets.

alt text

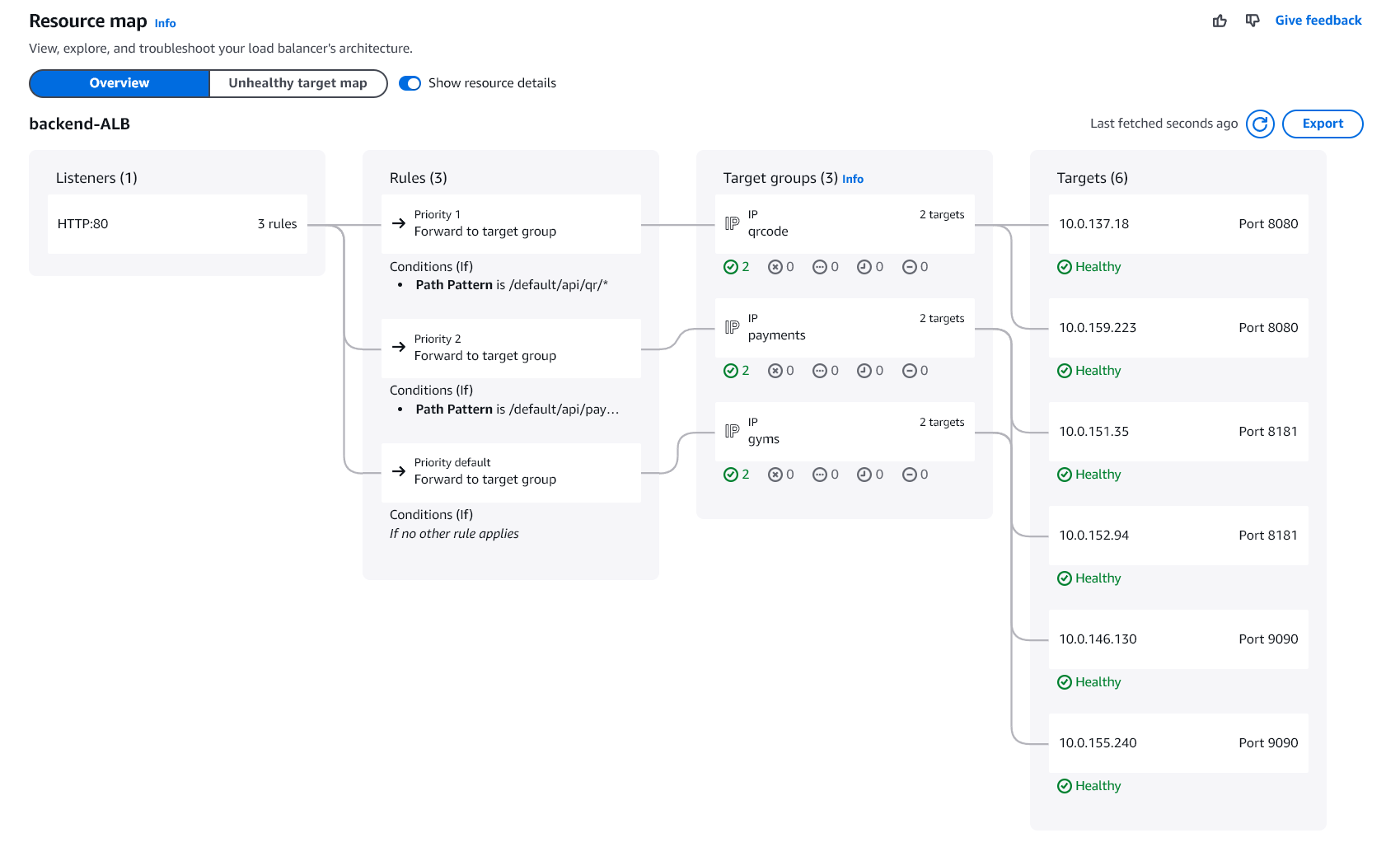

Internal Application Load Balancer (Internal ALB):

  • Facilitates secure communication between microservices within the private network. This ALB is connected to all microservices.

alt text

  • A VPC Link connects the private subnets to the API Gateway, ensuring secure and efficient communication between internal resources and external clients.

API Gateway

The API Gateway serves as the primary entry point for external clients and provides:

  • Authentication and Authorization using AWS Cognito.
  • Role Management to control user access to specific features and resources.
  • User Management, including account creation, permissions, and session handling.

alt text

Microservices Communication

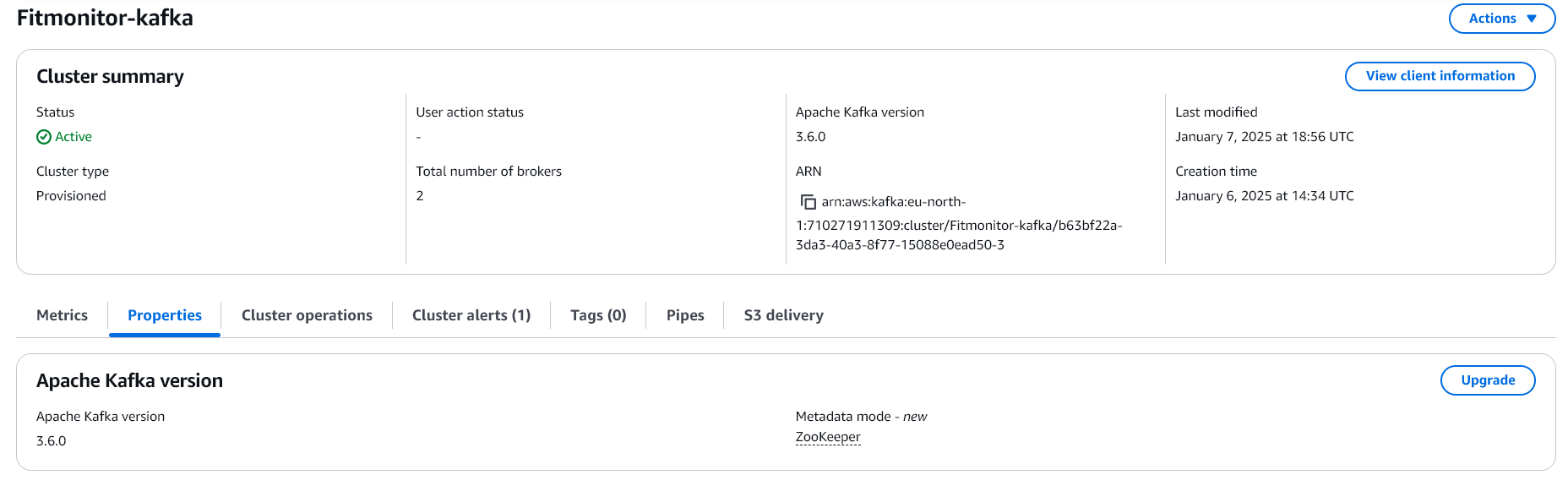

  • The architecture leverages Amazon MSK (Managed Streaming for Apache Kafka) to ensure efficient and reliable communication between microservices.

alt text

Monitoring

  • AWS CloudWatch is used to monitor logs and service metrics, providing visibility and ensuring quick incident response.
